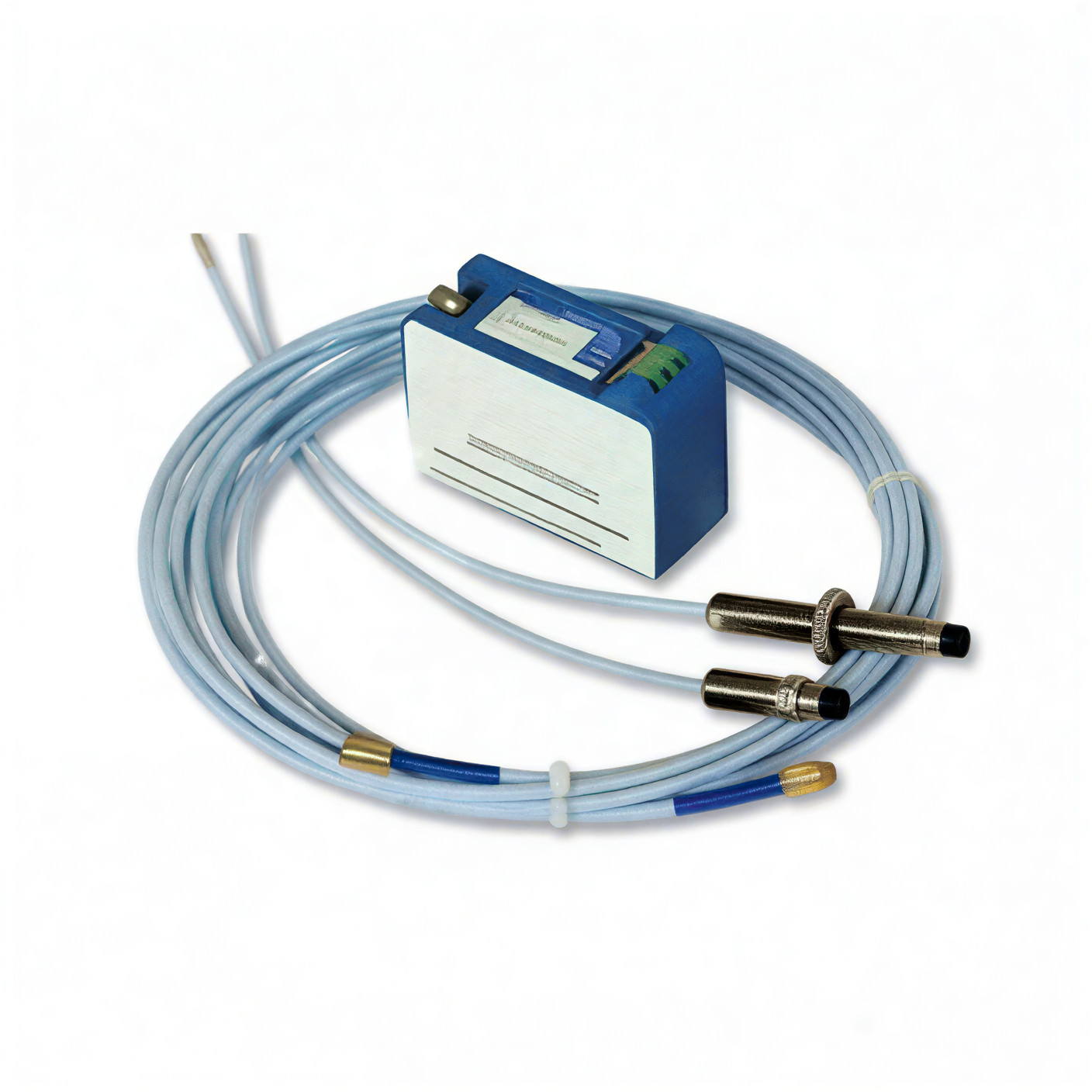

Bently Nevada 3300 XL 25mm Proximity Probe

SKU: 3300 XL 25mm Probe
In Stock

The Bently Nevada 3300 XL 25mm Proximity Probe is designed to replace older 7200 series and 25mm DE Integral systems, including side and rear exit versions. It delivers the same output as previous models, allowing easy upgrades without monitor changes, but all system components must be replaced with 3300 XL 25mm parts for proper operation.

Have a Question? Ask a Specialist

(+353) 86 0258986 [email protected]

Category:
Tags:
Brand:

Description

The Bently Nevada 3300 XL 25mm Proximity Probe is a high-performance eddy current sensor that delivers accurate non-contact measurements of shaft vibration and displacement in critical rotating machinery. Its extended measurement range ensures reliable operation in demanding industrial environments.

The Bently Nevada 3300 XL 25mm Proximity Probe also allows seamless upgrades from older 7200 series and 25mm DE Integral systems, providing the same output signal to avoid changes to existing monitors. For optimal performance, all system components should be replaced with 3300 XL 25mm parts.

QInstrument is a leading supplier of Bently Nevada 3300 XL 25mm Proximity Probe in UK and Ireland (EU), offering competitive prices and fast worldwide shipping across Turkey, Saudi Arabia, Oman, Nigeria, Indonesia, Malaysia, Vietnam, Mexico, Brazil, Argentina, and Colombia. Buy Bently Nevada Proximity Probe from one of the UK’s leading suppliers of industrial automation and instrumentation equipment.

Features of Bently Nevada 3300 XL 25mm Proximity Probe

  • Designed for precise non-contact shaft vibration and displacement measurement
  • Extended 25 mm measurement range for improved linearity
  • Direct replacement for 7200 series and 25 mm DE Integral transducer systems
  • Same output signal as legacy systems for easy upgrades without monitor changes
  • Available in multiple case configurations, including side and rear exit designs
  • Rugged, industrial-grade construction for reliable long-term performance
  • Compatible with Bently Nevada 3300 XL monitoring and protection systems

Technical Specifications of Bently Nevada 3300 XL 25mm Proximitor Probe

  • Probe type: Eddy‑current proximity transducer (3300 XL series)
  • Probe diameter: 25 mm (0.98 in) sensing element size
  • Output sensitivity: ~0.787 V/mm (20 mV/mil) nominal
  • Linear range: Up to ~12.7 mm (500 mils) of target movement
  • Output resistance: ~50 Ω
  • Recommended target: ≥ 61 mm (2.4 in) diameter AISI 4140 steel
  • Probe tip material: Polyetheretherketone (PEEK)
  • Probe case material: AISI 304 stainless steel
  • Temperature range (probe): –35 °C to +200 °C (–31 °F to +392 °F), intermittent to +250 °C (482 °F)
  • Transducer system temp: –51 °C to +100 °C for proximitor sensor
  • Power supply requirement: –17.5 Vdc to –26 Vdc (typical)
  • Load requirement: ~10 kΩ at specified power
  • Cable type: FluidLoc® coaxial for moisture resistance
  • Connector: High‑temperature ClickLoc™ connectors
  • RFI/EMI immunity: Enhanced for CE compliance
  • Mounting: DIN‑rail or traditional panel mount for proximitor sensor

Proximity Probe Part Number & Configuration Guide

Standard (Example) Part Number

330851-01-000-010-10-00-00

This is a reference configuration for the Bently Nevada 3300 XL 25mm Proximity Probe. It represents one commonly supplied setup and helps customers understand how the part number is structured.

Configurable Part Number Format

330851-XX-XXX-XXX-XX-XX-XX

Each X / XX in the part number indicates a selectable option that can be customized based on your application requirements such as probe length, cable length, connector type, approvals, or environmental conditions.

✅ Important: Final part number depends on the exact configuration needed for your machinery, environment, and monitoring system.

Applications

The Bently Nevada 3300 XL 25mm Proximity Probe is commonly used in monitoring critical rotating machinery, including:

  • Steam and gas turbines
  • Centrifugal and axial compressors
  • Large industrial motors and generators
  • Reciprocating compressors (rod position monitoring)
  • Shaft vibration, axial (thrust) position, and differential expansion measurements

Downloadable

Bently Nevada 3300 XL 25mm Proximitor Probe Product Specifications
