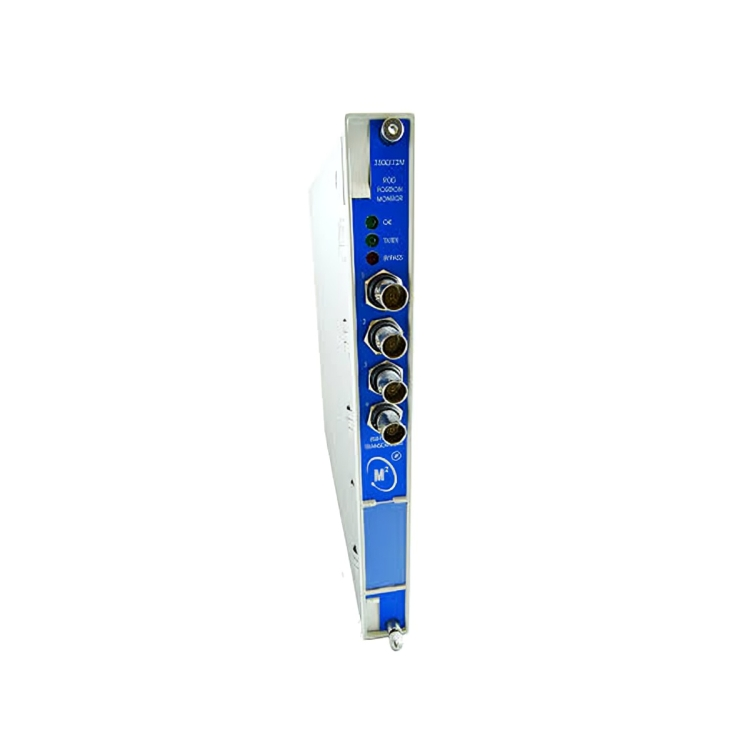

Bently Nevada 3500/72M Recip Rod Position Monitor

The Bently Nevada 3500/72M Recip Rod Position Monitor is a four-channel module that accepts inputs from proximity transducers. It conditions these signals to provide accurate dynamic and static rod position measurements and continuously compares the values with user-programmable alarm setpoints to ensure reliable compressor protection.

The Bently Nevada 3500/72M Recip Rod Position Monitor allows users to configure each channel through the 3500 Rack Configuration Software. Each channel can be programmed to measure rod position, rod drop, or hyper-compressor performance, providing flexible and precise monitoring for reciprocating compressor applications.

QInstrument is a leading supplier of Bently Nevada 3500/72M Recip Rod Position Monitor in UK and Ireland (EU), offering competitive prices and fast worldwide shipping across Turkey, Saudi Arabia, Oman, Nigeria, Indonesia, Malaysia, Vietnam, Mexico, Brazil, Argentina, and Colombia. Buy Bently Nevada Vibration Monitor from one of the UK’s leading suppliers of industrial automation and instrumentation equipment.

Features of Bently Nevada 3500/72M Recip Rod Position Monitor

• 4 proximity transducer input channels
• Provides dynamic and static rod position measurements
• User‑programmable alarm setpoints
• Configurable via 3500 Rack Configuration Software
• Supports rod position, rod drop, and hyper‑compressor measurements
• Front‑panel status LEDs (OK, TX/RX, Bypass)

Technical Specifications of Bently Nevada 3500/72M Recip Rod Position Monitor

• Channels: 4 proximity transducer inputs
• Input types: Proximity probes
• Measurement functions: Dynamic and static rod position, rod drop, hyper‑compressor measurement
• Signal conditioning: Converts proximity input to position parameters
• Alarm capability: User‑programmable alarm setpoints per channel
• Configuration: 3500 Rack Configuration Software
• Indicators: Front‑panel LEDs (OK, TX/RX, Bypass)
• Mounting: Fits in 3500 series rack
• Power consumption: ~7–9 W (typical)
• Operating temperature: –30 °C to +65 °C (–22 °F to +149 °F)
• Storage temperature: –40 °C to +85 °C (–40 °F to +185 °F)
• Humidity tolerance: Up to 95 % non‑condensing
• System integration: Compatible with Bently Nevada 3500 series

Vibration Monitor Part Number & Configuration Guide

Standard (Example) Part Number

3500/72-01-00

This is a reference configuration for the Bently Nevada 3500/72M Recip Rod Position Monitor. It represents one commonly supplied setup and helps customers understand how the part number is structured.

Configurable Part Number Format

3500/72-XX-XX

Each X / XX in the part number indicates a selectable option that can be customized based on your application requirements such as Number of Channels, I/O Module Type & Approvals.

✅ Important: Final part number depends on the exact configuration needed for your machinery, environment, and monitoring system.

Applications

The Bently Nevada 3500/72M Recip Rod Position Monitor is commonly used in industrial machinery protection and monitoring, including:

• Monitoring rod position in reciprocating compressors
• Measuring rod drop and detecting abnormal rod motion
• Tracking hyper-compressor performance
• Providing position-based alarm and trip inputs
• Supporting predictive maintenance and operational diagnostics
• Integrating with 3500 series machinery protection systems

Downloadable

Bently Nevada 3500/72M Recip Rod Position Monitor Product Specifications
