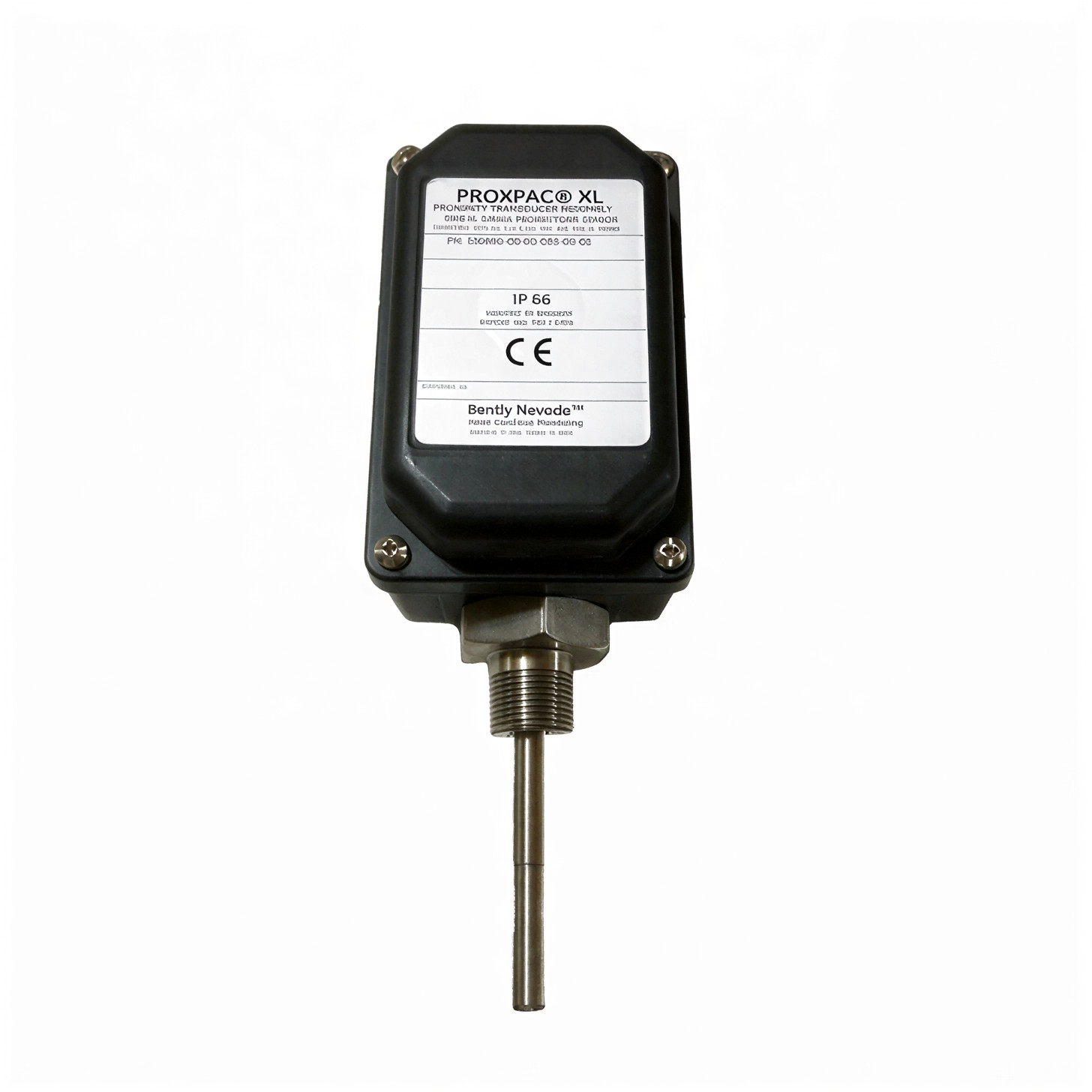

Bently Nevada PROXPAC XL Proximity Transducer Assembly

The Bently Nevada PROXPAC XL Proximity Transducer Assembly allows easy external access and adjustment of proximity probes while delivering a fully integrated, self-contained monitoring solution. It features a built-in 3300 XL Proximitor Sensor within the housing cover, eliminating the need for an extension cable or separate Proximitor housing. This streamlined design enables direct field wiring between the monitor and the PROXPAC XL Assembly, simplifying installation and reducing overall system complexity.

The PROXPAC XL housing uses advanced Polyphenylene Sulfide PPS thermoplastic reinforced with glass and conductive fibers for superior strength and electrostatic discharge protection. This durable construction replaces traditional steel and aluminum housings and provides enhanced resistance in harsh industrial environments. Rated for Type 4X and IP66, the assembly ensures reliable performance in severe operating conditions.

QInstrument is a leading supplier of Bently Nevada PROXPAC XL Proximity Transducer Assembly in UK and Ireland (EU), offering competitive prices and fast worldwide shipping across Turkey, Saudi Arabia, Oman, Nigeria, Indonesia, Malaysia, Vietnam, Mexico, Brazil, Argentina, and Colombia. Buy Bently Nevada Proximity Sensors from one of the UK’s leading suppliers of industrial automation and instrumentation equipment.

Features of Bently Nevada PROXPAC XL Proximity Transducer Assembly

• -60 to 350°F (-51 to 177°C) probe temp range
• -60 to 212°F (-51 to 100°C) housing temp range
• -17.5 Vdc to -26 Vdc without barriers
• -23 Vdc to -26 Vdc with barriers.
• 50 Ω output resistance
• Type 4X, IP66
• Available with no approvals or multiple approvals

Technical Specifications of Bently Nevada PROXPAC XL Proximity Transducer Assembly

• Sensor Input: Integrated 3300 XL 8 mm proximity probe with 1 m cable installed in housing
• Power Supply: –17.5 Vdc to –26 Vdc without barriers; –23 Vdc to –26 Vdc with barriers; max 12 mA consumption
• Output Resistance: 50 Ω
• Supply Sensitivity: Less than 2 mV change in output per volt change in input voltage
• Frequency Response: 0 – 10 kHz (±3 dB) with up to 305 m (1 000 ft) of field wiring
• Linear Measurement Range: Typically 2 mm (80 mils) from ~0.25 mm (10 mils) to ~2.3 mm (90 mils), depending on part configuration
• Operating Temperature: –51 °C to +177 °C (–60 °F to +350 °F)
• Nominal Probe DC Resistance: ~7.59 Ω ± 0.50 Ω (for 1 m probe)
• Minimum Target Size: 15.2 mm (0.6 in) diameter flat target
• Minimum Shaft Diameter: 50.8 mm (2.0 in) (recommended 76.2 mm / 3.0 in)
• Housing Material: Polyphenylene Sulfide (PPS) reinforced with glass and conductive fibers
• Protection Rating: Type 4X and IP66 for protection against dust, water, and harsh environments
• Probe Case Material: AISI 304 stainless steel
• Cable: 1 m length, 75 Ω triaxial with FEP insulation

Proximity Sensors Part Number & Configuration Guide

Standard (Example) Part Number

330880-00-00-00-00-00

This is a reference configuration for the Bently Nevada PROXPAC XL Proximity Transducer Assembly. It represents one commonly supplied setup and helps customers understand how the part number is structured.

Configurable Part Number Format

33088X-XX-XX-XX-XX-XX

Each X / XX in the part number indicates a selectable option that can be customized based on your application requirements such as Full-scale Option, System Length, Mounting & Approvals.

✅ Important: Final part number depends on the exact configuration needed for your machinery, environment, and monitoring system.

Applications

The Bently Nevada PROXPAC XL Proximity Transducer Assembly is commonly used in monitoring critical rotating machinery, including:

• Steam and gas turbines
• Centrifugal and axial compressors
• Industrial pumps and motors
• Generators and high-speed rotating equipment
• Harsh environment installations requiring sealed, self-contained proximity systems

Downloadable

Bently Nevada PROXPAC XL Proximity Transducer Assembly Product Specifications
